| اسم العلامة التجارية: | ZMSH |
| رقم الطراز: | أنبوب الزعفري الملمع |
| الـ MOQ: | 1piece |
| تفاصيل التعبئة: | حزمة فراغ |
| شروط الدفع: | ر/ر |
Sapphire Tubes High Hardness DSP Transparent Highly Used for Tough Environment
Sapphire tubes are high-performance components made from single-crystal aluminum oxide (Al₂O₃), renowned for their exceptional hardness, optical clarity, and resistance to extreme temperatures and chemical environments. These tubes are widely used in demanding applications such as optical protection sleeves, high-temperature reactors, vacuum systems, and fluid transport in harsh conditions. With excellent light transmission from ultraviolet to infrared and superior structural integrity, sapphire tubes provide long-term reliability far beyond that of glass or quartz.
Product Highlights:
Extremely High Biocompatibility: Sapphire tube has stable chemical properties. It does not react chemically with human tissues or blood, nor does it release harmful substances, meeting the biosafety standards for medical implants.
Superior Hardness and Wear Resistance: With a Mohs hardness of 9, second only to diamond, sapphire tube can resist friction and extrusion when inserted into human blood vessels or organs. It is not prone to scratches or deformation, ensuring the structural stability of the catheter.
Excellent High-Temperature Resistance and Chemical Stability: Sapphire tube can withstand high-temperature sterilization (e.g., autoclave sterilization) and resist corrosion from chemical disinfectants such as strong acids and alkalis. It maintains stable performance even after repeated use.
Good Optical Transmittance: Some sapphire tubes can leverage their optical properties and work with devices like endoscopes and lasers .

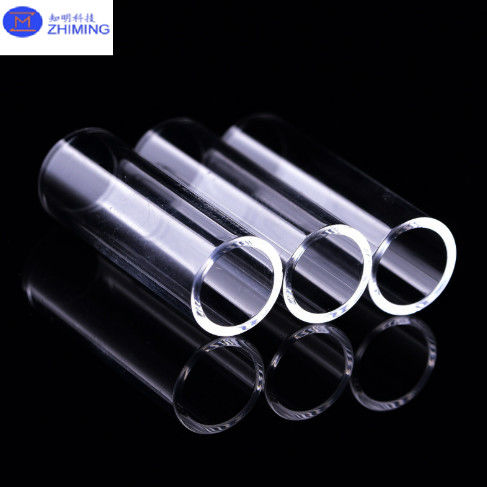

Product Pictures:
Product Parameters:
| Material Property | Value/Description |
| Chemical Formula | Al₂O₃ (aluminum oxide) |
| Hardness | 9 Moh's |
| Class | Hexagonal-scalenohedral |
| Melting Point | 2053°C (3727°F) |
| Maximum Useful Temperature | 2000°C |
| Surface Quality | 80/50, 60/40, 40/20, 20/10 (Scratch/Dig) |
| Axis Orientation | C-Axis (C-Plane), M-Plane, A-Plane, R-Plane and Random |
| Young's Modulus | 435 GPa |
| Tensile Strength | 275 MPa to 400 MPa |
| Flexural Strength | 480 MPa to 895 MPa |
| Modulus of Rigidity | 175 GPa |
| Density | 3.97 g/cm³ |
| Transmission Range | 190nm to 5 microns |
| Poisson's Ratio | 0.27 - 0.30 |
| Abbe Number (νd) | 72.24 |
| Dimension Tolerance | ± 0.01-0.10mm |
| Thickness Tolerance | ± 0.1mm |
Related Product Recommendation:
High Performance Sapphire Capillary Tubes Thermal Shock Resistance
Q&A:
Q: What is a sapphire tube ?
A: A sapphire tube is a cylindrical component made from synthetic sapphire (single-crystal aluminum oxide, Al₂O₃), known for its exceptional hardness, high optical clarity, and resistance to heat and chemicals.
Q: What are sapphire protection tubes ?
A: Sapphire protection tubes are cylindrical protective components made of sapphire material. They are mainly used to shield internal sensitive parts (such as sensors, heating elements, or optical fibers) from damage in harsh environments, while ensuring the normal operation of the protected parts (e.g., signal transmission, heat conduction).
Q: What is a sapphire capillary tube?
A: A sapphire capillary tube is an ultra-thin, hollow cylindrical component made of sapphire (α-Al₂O₃), typically with an inner diameter ranging from a few micrometers to hundreds of micrometers. It combines sapphire’s inherent material advantages with the structural characteristics of capillary tubes, making it ideal for scenarios requiring precise fluid delivery, micro-sensing, or optical signal transmission in harsh environments.
